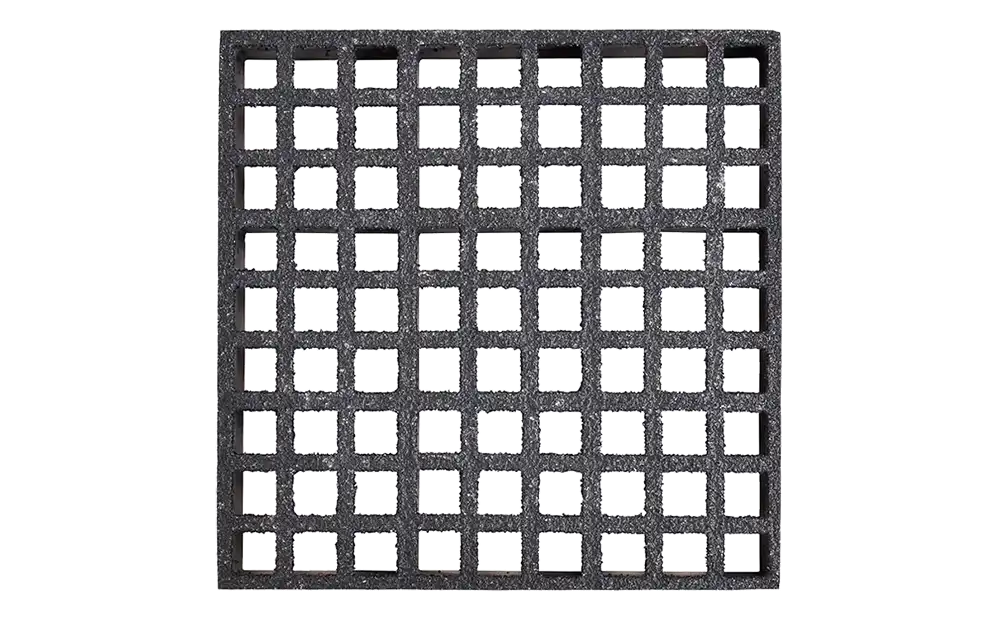

d2 GRP Mini — fine mesh grating for walkways and platforms
d2 Dura GRP Mini has all the benefits of our standard Dura GRP but with a tighter mesh that prevents smaller objects from falling through. It meets BS EN 14122 category B and the European 20 mm ball-safety requirement — and comes with a 25-year guarantee.
Mini suits many projects and delivers reliability, durability and a long service life — perfect for environments such as marinas, riser shafts, roof walkways and trench covers. Its attractive design is available in several distinct colours.
Price on request — contact us for a quote and stock availability.
Request a quoteBuilt for safety and long service life
Anti-slip surface
Retains 95% of its slip resistance after 1 million footsteps (BS 7976).
Fire-rated
Class B fire rating to BS EN 13501.
Low maintenance
Improved service life — the most cost-effective solution over time.
Sustainability focus
Up to 17.33% lower embodied carbon than other mini-mesh grating on the market.
Mini — technical data
Also known as: GRP Mini Mesh · fine mesh grating
- 35 mm
- 19,5 mm / 54 %
- 45 mm
- 19,5 mm / 54 %
- 55 mm
- 19,5 mm / 54 %
- 35 mm
- 13,2 kg per m²
- 45 mm
- 15,3 kg per m²
- 55 mm
- 19,0 kg per m²
- 35 mm
- 1 590 mm
- 45 mm
- 2 210 mm
- 55 mm
- 2 500 mm
- 35 mm
- 870 mm
- 45 mm
- 1 330 mm
- 55 mm
- 2 280 mm
- 35 mm
- 900 mm
- 45 mm
- 1 170 mm
- 55 mm
- 1 470 mm
- 35 mm
- 710 mm
- 45 mm
- 880 mm
- 55 mm
- 1 110 mm
- 35 mm
- Bibehåller 95 % efter 1 miljon fotsteg
- 45 mm
- —
- 55 mm
- —
- 35 mm
- Klass B
- 45 mm
- Klass B
- 55 mm
- Klass B
| Property | 35 mm | 45 mm | 55 mm |
|---|---|---|---|
| Open mesh size / open area | 19,5 mm / 54 % | 19,5 mm / 54 % | 19,5 mm / 54 % |
| Weight | 13,2 kg per m² | 15,3 kg per m² | 19,0 kg per m² |
| Max span at 1.5 kN point load @ 1% deflection | 1 590 mm | 2 210 mm | 2 500 mm |
| Max span at 1.5 kN point load @ 0.5% deflection | 870 mm | 1 330 mm | 2 280 mm |
| Max span at 5 kN uniformly distributed load (UDL) @ 1% deflection | 900 mm | 1 170 mm | 1 470 mm |
| Max span at 5 kN uniformly distributed load (UDL) @ 0.5% deflection | 710 mm | 880 mm | 1 110 mm |
| Slip resistance | Bibehåller 95 % efter 1 miljon fotsteg | — | — |
| Fire rating | Klass B | Klass B | Klass B |
Need more technical information, point load or UDL data? Contact us for the complete documentation.
Click to view details
Need technical advice?
Expert support for GRP solutions.
Detailed planning and CAD.
We come to your facility.
Certified installers on site.
Fast and accurate cost estimates.
More about d² Dura Grating Mini Mesh
Byggkomposit is the exclusive Swedish distributor for Dura Composites. Technical data sheets, load tables and certificates are published on the manufacturer's own product page.
