d2 GRP Standard

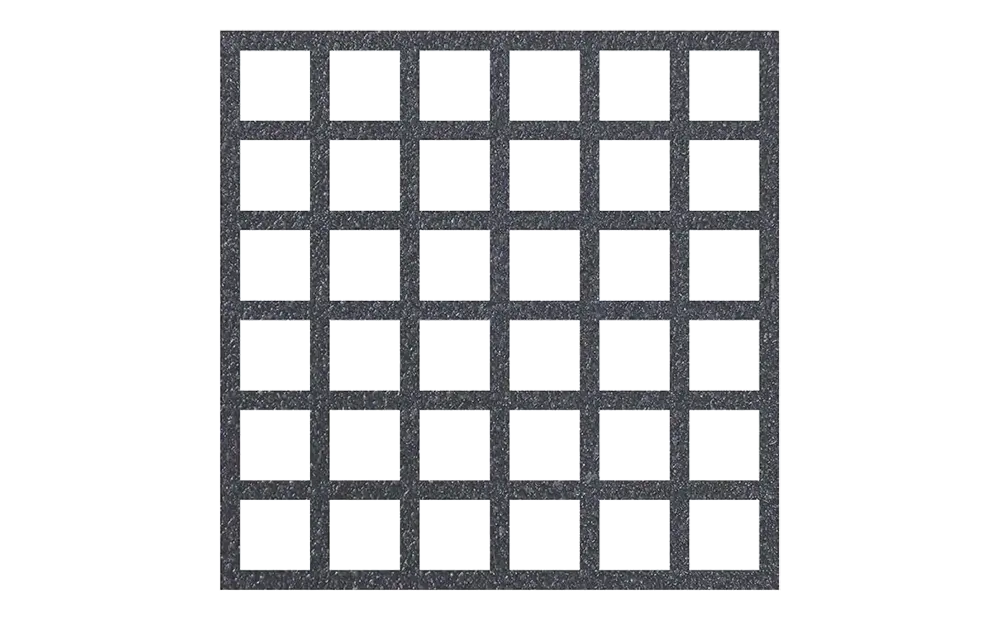

d2 GRP Standard is a moulded GRP mesh grating for walkways, platforms and work surfaces. It offers load capacity in both directions, low self-weight and a 25-year guarantee under the manufacturer's terms. Height, panel size and colour are selected from load, clear span, supports and visibility requirements.
d2 GRP Standard is a moulded GRP mesh grating for long-term use in industrial and other demanding environments. Load capacity and deflection are verified against the load tables for the selected height and span.
The material is corrosion resistant, electrically insulating and non-magnetic. It does not rust and is used in damp, chemically exposed or electrically sensitive environments. Chemical resistance must be verified against the actual medium and concentration.
The low self-weight simplifies transport, cutting and handling on site and can shorten installation time. The material normally requires no painting, galvanising or corrosion treatment during its service life.
The grating has a gritted anti-slip surface and is available in dark grey, yellow and green. Slip requirements are assessed against the actual environment of use.
Price on request — contact us for a quote and stock availability.
Request a quoteProperties and technical conditions
Anti-slip surface
Only 5% reduction in slip resistance after 1 million footsteps (BS 7976).
Fire-rated
Class B fire rating to BS EN 13501.
Low maintenance
Improved service life — the most cost-effective solution over time.
Sustainability focus
d² has contributed to almost 5 million kg of CO² savings.
Standard — technical data
Also known as: GRP Standard grating · d² Dura Grating Standard · fibreglass grating 26/38/50 mm
- 26 mm
- 32 mm / 60 %
- 38 mm
- 31 mm / 66 %
- 50 mm
- 28 mm / 63 %
- 26 mm
- 10,3 kg per m²
- 38 mm
- 13,2 kg per m²
- 50 mm
- 15,7 kg per m²
- 26 mm
- 860 mm
- 38 mm
- 1 730 mm
- 50 mm
- 2 770 mm
- 26 mm
- 500 mm
- 38 mm
- 860 mm
- 50 mm
- 1 800 mm
- 26 mm
- 690 mm
- 38 mm
- 1 040 mm
- 50 mm
- 1 270 mm
- 26 mm
- 510 mm
- 38 mm
- 790 mm
- 50 mm
- 970 mm
- 26 mm
- Endast 5 % försämring efter 1 miljon fotsteg
- 38 mm
- —
- 50 mm
- —
- 26 mm
- Klass B
- 38 mm
- Klass B
- 50 mm
- Klass B
| Property | 26 mm | 38 mm | 50 mm |
|---|---|---|---|
| Open mesh size / open area | 32 mm / 60 % | 31 mm / 66 % | 28 mm / 63 % |
| Weight | 10,3 kg per m² | 13,2 kg per m² | 15,7 kg per m² |
| Max span at 1.5 kN point load @ 1% deflection | 860 mm | 1 730 mm | 2 770 mm |
| Max span at 1.5 kN point load @ 0.5% deflection | 500 mm | 860 mm | 1 800 mm |
| Max span at 5 kN uniformly distributed load (UDL) @ 1% deflection | 690 mm | 1 040 mm | 1 270 mm |
| Max span at 5 kN uniformly distributed load (UDL) @ 0.5% deflection | 510 mm | 790 mm | 970 mm |
| Slip resistance | Endast 5 % försämring efter 1 miljon fotsteg | — | — |
| Fire rating | Klass B | Klass B | Klass B |
Need more technical information, point load or UDL data? Contact us for the complete documentation.
Click to view details
Need technical advice?
Expert support for GRP solutions.
Detailed planning and CAD.
We come to your facility.
Certified installers on site.
Fast and accurate cost estimates.
More about d² Dura Grating Standard Mesh Smooth
Byggkomposit is the exclusive Swedish distributor for Dura Composites. Technical data sheets, load tables and certificates are published on the manufacturer's own product page.
